Direct Solar Hot Water!
SOLCRAFTE
The 2-IN-1 Solar Hot Water Solution.

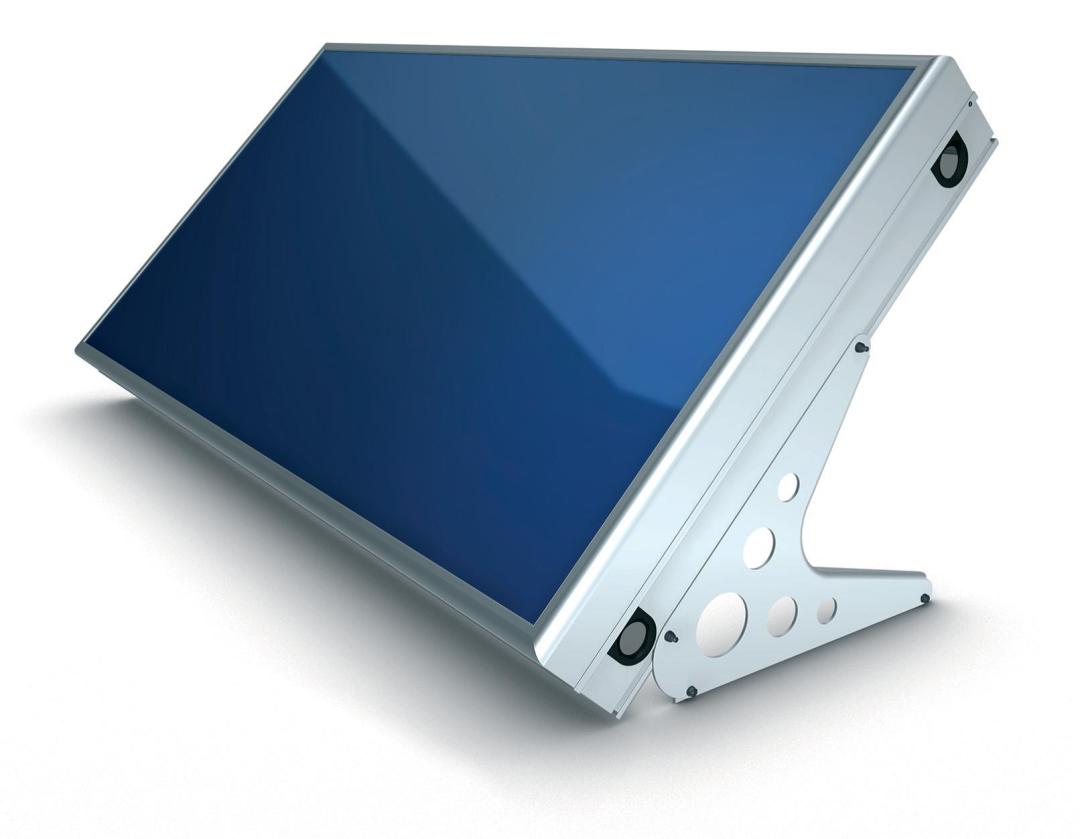

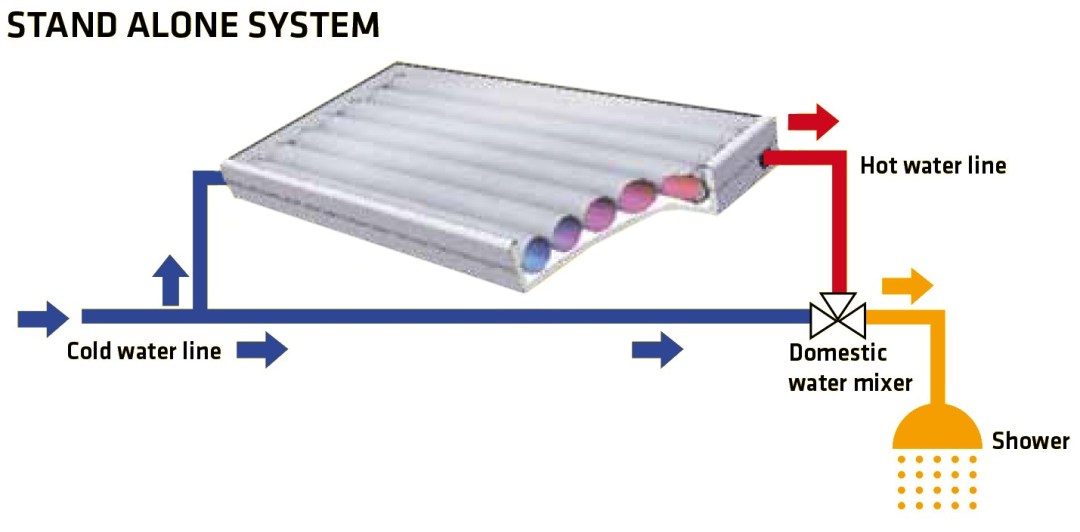

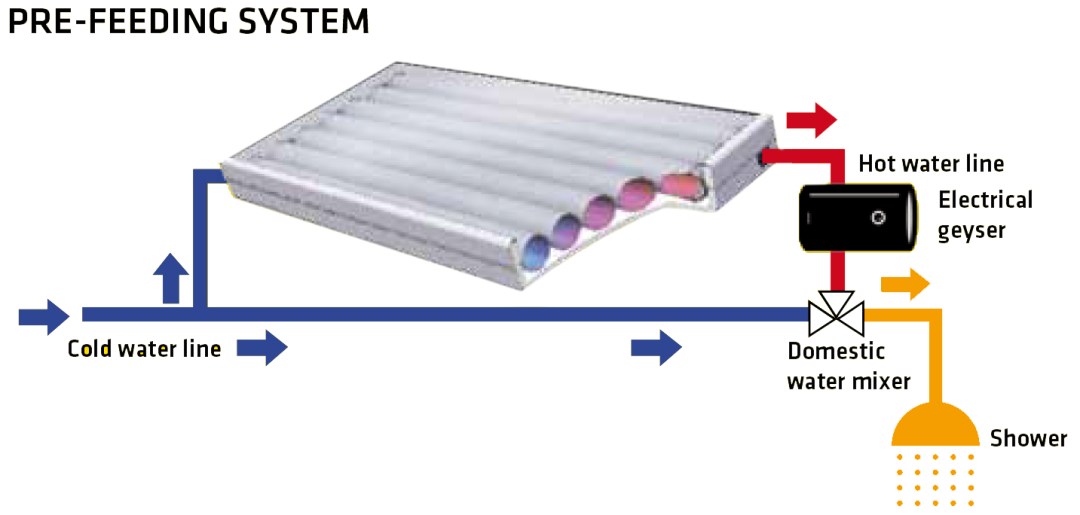

The SOLCRAFTE is a solar collector with an integrated tank. This product offers various installation options. It could be installed as a stand alone unit with an electrical element as back-up or it could be installed as pre-feeding solution to your existing electrical geyser or as a solution installed with a direct in-line gas installation.
| Solcrafte (ℓ) | 100 | 150 | 200 |
| Overall area | 1.1m2 | 1.75m2 | 2.4m2 |
| Dimensions L x W x H [mm] | 2.184 x 510 x 212 | 2.184 x 800 x 212 | 2.184 x 1.100 x 212 |
| Weight (empty, excl.mounting) [kg] | 40 | 60 | 75 |
| Volume [L] | 90 | 145 | 195 |
| Insulation | 30mm PUR foam plate | ||
| Maximum temperature [⁰C] | 100 | ||
| Maximum operating pressure [bar] | 4 | ||
| Heating element (optional) | Optional (2 kW) | ||
| Connections | 2 x ¾” male threads | ||
| Installation | Flat roof/Rooftop | ||
| Warranty | 5 years |
